EZ863H-modem terminal cloud ready with sensor/modbus inputs

Hover over image to zoom

  • EZ863H Devices



The EZ863H is a complete system solution for many M2M metering applications such as Gate control, Cellular alert systems, Automatic meter reading (AMR) and more.

The device includes a modem engine of Telit xE910 family with Python and microcontroller for peripheral assistance.



Main features:

    Integrated microproccessor for system wachdog
    8 x digital 0-50V inpus
    2 x 4-20mA 12 bit analog inputs
    2 x 0-15V analog 12 bit inputs
    1 x relay output
    3 x open collector outputs
    2g/3g modem
    GNSS/GPS (optional)
    USB B
  • Image 2
US$235.78
SKU:
EZ863H
Availability:
Contact sales@glyn.com.au for delivery leadtime if quantity to be ordered is greater than our stock
Shipping:
Calculated at checkout
Current Stock:
17

 Product Description

The EZ863H is a complete system solution for many IoT/M2M applications such as Gate control, Cellular alert systems, Automatic meter reading (AMR) and more.
The device includes a modem engine of Telit xE910 family with Python and microcontroller for peripheral assistance
The terminal can be used stand alone / with Telit deviceWISE cloud / or your own cloud
Gatetel EZ863H webpage

Options:

  • As standalone terminal with GPIO/relay/GPS
  • As deviceWISE/other cloud interacting terminal
  • RS232 / RS485 versions
  • Modbus gateway for attached plc to cloud
  • Internal battery backup
  • Standard simple widget GUI or custom PHP portal with workflow/notifications
  • Telit deviceWISE cloud version datasheet



Applications:

  • Ideal for industrial monitoring/control/tracking
  • Application can be script with Python/C internal for standalone (see AppzoneC here) or AT commands from external host to serial ports
  • Sensor>terminal>sim>cloud>ui>notifications>workflow
  • Optional month subscription available for AU$6-10 per device depending volume/services used
  • Telit deviceWISE ioT cloud that is very easy to use with the EZMoto....see here
  • See more presentations at www.iotzone.co/technical



Features:

  • Integrated microprocessor for system watchdog
  • 8 x digital 0-50V inputs
  • 2 x 4-20mA 12 bit analog inputs
  • 2 x 0-15V analog 12 bit inputs
  • 1 x relay output
  • 3 x open collector outputs
  • 2g/3g modem
  • GNSS/GPS (optional)
  • USB B



More resources:

IoTzone Use Cases

Telit Use Cases

Cumulus IoT family kit manual

Telit sim resource sheet

IoTzone presentations

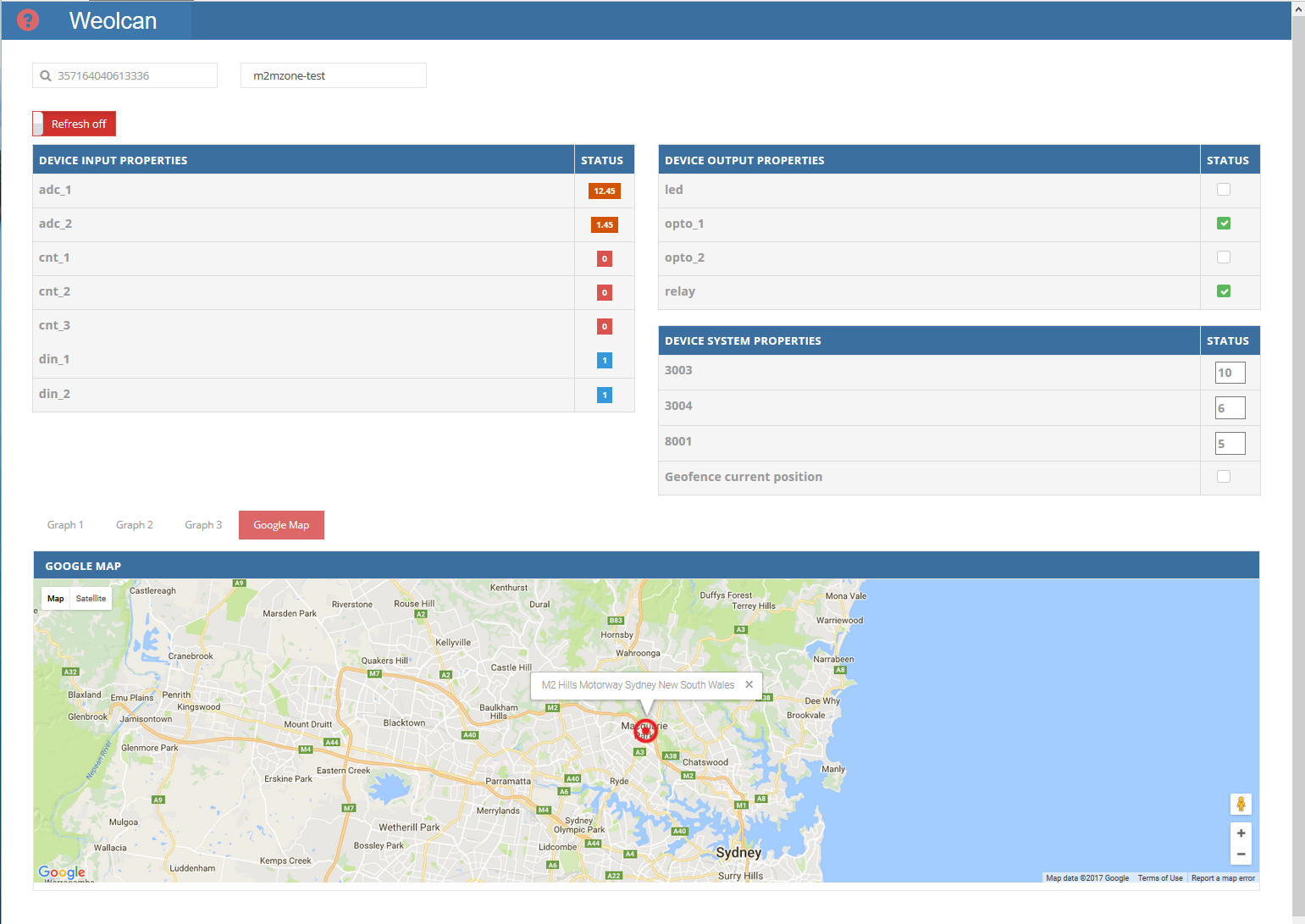

Example Weolcan GUI portal framework as below screenshot
