The GFF910 module is designed by Glyn to allow the user easy plug and play options for GSM, UMTS, HSPA and CDMA. With plug and play options via the Telit Global Form Factor, the entire range of xE910 modules are supported and options such as voice and GPS can be easily fulfilled without the need for re-work or re-design.

By providing an 80 way Global Form Factor interface the GFF910 allows the user the option to mount the module which best fits their application.

In most cases your design needs to provide flexibility depending on which region the product is to be deployed and or certified. The GFF910 form factor takes the guess work out of the design by providing a single connector for interfacing the entire range of radio types depending on your needs.

Full electrical and software (AT command) compatibility is maintained between each module type be it GSM (GFF910-GE), CDMA (GFF910-DE or GFF910-CE) or HSPA+ (GFF910-G).

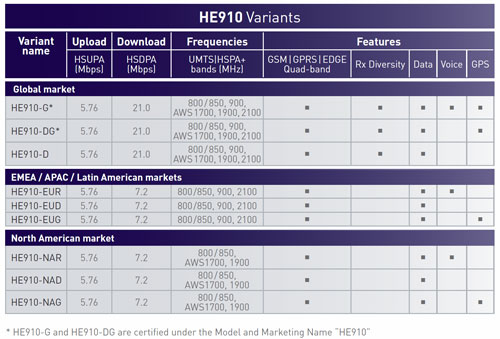

GFF910 Product Variants

Glyn can also supply the GFF910 with any Telit 910 series module, i.e. HE910-EUG, HE910-D, HE910-GA, HE910-NAD, HE910-NAG, CE910-DUAL, DE910, and GE910-GNSS. Please contact us for further details here or send us an email at sales@glyn.com.au

GFF910-G Pricing

1-9pcs: AU$125
10pcs+: Please contact us here or send us an email at sales@glyn.com.au

GFF910-G Product Features

• Supported bands
• 4 Bands GSM / GPRS /EDGE: 850 / 900 / 1800 / 1900 MHz
• 5 Bands UMTS / HSPA: 800/850, 900, AWS1700, 1900, 2100 MHz
• HSPA+ data up to 21.0 Mbps downlink / 5.76 Mbps uplink
• Quad Band GPRS and EDGE class 33
• Dimension: 36.2mm (L) x 30mm (W) x 5.5mm (D)
• 80 pin Global Form Factor connector interface*
• Optional GPS
• Rx Diversity
• Extended temperature range
• SIM Access Profile
• 3GPP release 7 compliant
• Control via AT commands according to 3GPP TS27.005, 27.007 and customized Telit AT commands
• Serial port multiplexer 3GPP TS27.010
• SIM application Tool Kits 3GPP TS 51.014
• Built in UDP/TCP/FTP/SMTP stack

* Note that the GFF910 module uses the same 80 pin connector as in existing Telit UC864 series and GFF910 could be used as a drop in replacement.  However we strongly recommend that the customer should fully test for compatibility before committing to any production. Matching Molex connector for GFF910 series also available on our webshop here.

Recommended Accessories

Molex connector (54150-0878) - available here
RF pigtail cable (INTCABLE5) - available here

Documentations

GFF910 Product Brief
GFF910 Pinout Details
Telit HE910 Family Datasheet
Telit xE910 Family Form Factor
Telit HE910 Family Documentation
Telit CE910 Family Documentation
Telit DE910 Family Documentation
Telit GE910 Family Documentation
