InvenSense MPU-9150 9-Axis (Gyroscope + Accelerometer + Compass) Sensor IC

Hover over image to zoom

  • Image 1
TDK InvenSense
US$15.13
SKU:
MPU-9150
Availability:
Contact sales@glyn.com.au for delivery leadtime if quantity to be ordered is greater than our stock
Current Stock:
Out of stock

 Product Description



NOTE: THIS PRODUCT IS NOW EOL. PLEASE USE MPU-9250 FOR NEW DESIGNS. WE HAVE NO MORE STOCK AND CAN'T SUPPLY ANY LONGER

 MPU-9150 EOL Notice

Overview

The MPU-9150™ is the world’s first 9-axis MotionTracking device designed for the low power, low cost, and high performance requirements of consumer electronics equipment including smartphones, tablets and wearable sensors.

The MPU-9150 incorporates InvenSense’s MotionFusion™ and run-time calibration firmware that enables manufacturers to eliminate the costly and complex selection, qualification, and system level integration of discrete devices in motion-enabled products, and guarantees that sensor fusion algorithms and calibration procedures deliver optimal performance for consumers.

Motion interface is rapidly becoming a key function in many consumer electronics devices including smartphones, tablets, gaming consoles, and smart-TVs as it provides an intuitive way for consumers to interact with electronic devices by tracking motion in free space and delivering these motions as input commands.

The MPU-9150 with MotionFusion and run-time calibration firmware enables consumer electronics manufacturers to rapidly commercialize cost effective motion-based functionality.

The MPU-9150 is a System in Package (SiP) that combines two chips: the MPU-6050, which contains a 3-axis gyroscope, 3-axis accelerometer, and an onboard Digital Motion Processor™ (DMP™) capable of processing complex 9-axis MotionFusion algorithms; and the AK8975, a 3-axis digital compass. The part’s integrated 9-axis MotionFusion algorithms access all internal sensors to gather a full set of sensor data. The part is offered in a 4x4x1mm LGA package and is upgrade-compatible with the MPU-6050™ integrated 6-axis MotionTracking device, providing a simple upgrade path and making it easy to fit on space constrained boards.

The InvenSense MotionApps™ Platform that comes with the MPU-9150 abstracts motion-based complexities, offloads sensor management from the operating system and provides a structured set of APIs for application development.

For precision tracking of both fast and slow motions, the parts feature a user-programmable gyro full-scale range of ±250, ±500, ±1000, and ±2000°/sec (dps), a user-programmable accelerometer full-scale range of ±2g, ±4g, ±8g, and ±16g, and compass with a full scale range of ±1200µT.

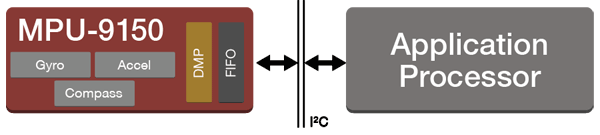

MPU-9150 System Diagram


Features

  • Gyroscope Features
    • Digital-output X-, Y-, and Z-Axis angular rate sensors (gyroscopes) with a user-programmable fullscale range of ±250, ±500, ±1000, and ±2000°/sec
    • External sync signal connected to the FSYNC pin supports image, video and GPS synchronization
    • Integrated 16-bit ADCs enable simultaneous sampling of gyros
    • Enhanced bias and sensitivity temperature stability reduces the need for user calibration
    • Improved low-frequency noise performance
    • Digitally-programmable low-pass filter
    • Factory calibrated sensitivity scale factor
    • User self-test
  • Accelerometer Features
    • Digital-output 3-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g
    • Integrated 16-bit ADCs enable simultaneous sampling of accelerometers while requiring no external multiplexer
    • Orientation detection and signaling
    • Tap detection
    • User-programmable interrupts
    • High-G interrupt
    • User self-test
  • Magnetometer Features
    • 3-axis silicon monolithic Hall-effect magnetic sensor with magnetic concentrator
    • Wide dynamic measurement range and high resolution with lower current consumption
    • Output data resolution is 13 bit (0.3 μT per LSB)
    • Full scale measurement range is ±1200 μT
    • Self-test function with internal magnetic source to confirm magnetic sensor operation on end products
  • Additional Features
    • 9-Axis MotionFusion via on-chip Digital Motion Processor (DMP)
    • Auxiliary master I2C bus for reading data from external sensors (e.g., pressure sensor)
    • Flexible VLOGIC reference voltage supports multiple I2C interface voltages
    • Smallest and thinnest package for portable devices: 4x4x1mm LGA
    • Minimal cross-axis sensitivity between the accelerometer, gyroscope and magnetometer axes
    • 1024 byte FIFO buffer reduces power consumption by allowing host processor to read the data in bursts and then go into a low-power mode as the MPU collects more data
    • Digital-output temperature sensor
    • User-programmable digital filters for gyroscope, accelerometer, and temp sensor
    • 10,000 g shock tolerant
    • 400kHz Fast Mode I2C for communicating with all registers
    • MEMS structure hermetically sealed and bonded at wafer level
    • RoHS and Green compliant

Applications

  • BlurFree™ technology (for Video/Still Image Stabilization)
  • AirSign™ technology (for Security/Authentication)
  • TouchAnywhere™ technology (for “no touch” UI Application Control/Navigation)
  • MotionCommand™ technology (for Gesture Short-cuts)
  • Motion-enabled game and application framework
  • InstantGesture™ iG™ gesture recognition
  • Location based services, points of interest, and dead reckoning
  • Handset and portable gaming
  • Motion-based game controllers
  • 3D remote controls for Internet connected DTVs and set top boxes, 3D mice
  • Wearable sensors for health, fitness and sports
  • Toys
  • Pedestrian based navigation
  • Navigation
  • Electronic Compass
