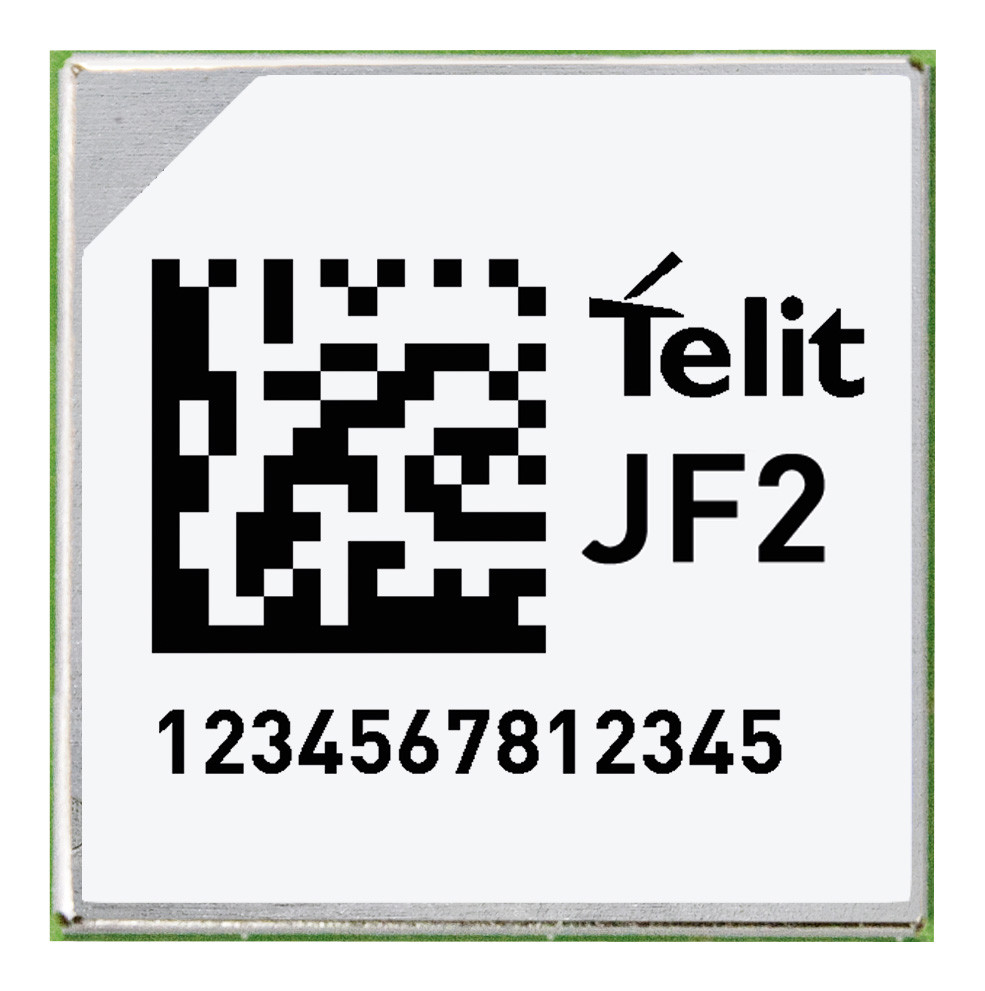

The new Telit Jupiter JF2 is the smallest module in the Telit portfolio, it features a state-of-the-art 48-channel GPS receiver with high sensitivity, extremely low power consumption and extended ephemeris injection for fastest TTFF.
Telit Jupiter JF2 coupled with a Telit GSM/GPRS module represents the ideal Wireless+GPS solution in terms of total cost effectiveness and time-to-market readiness.
The extreme low profile and small size of the QFN package enables the design of ultra-
compact applications. The solution cost and required space is significantly reduced.
With its ultra-compact design and extended temperature range, the Telit Jupiter JF2 is the perfect module for high-volume m2m combined applications and mobile/tracking data devices.
Telit Jupiter JF2 is equipped with integrated LNA as well as a wide set of interfaces like UART, I2C, and SPI. It supports assisted ephemeris file injection as well as Satellite Based Augmentation System (SBAS) like WAAS, EGNOS, MSAS and GAGAN. Moreover, Telit Jupiter JF2 is able to track and remove in-band Jammers.
Jupiter JF2 is provided with an internal SW engine able to locally predict the ephemeris for three days in advance starting from ephemeris data collected by satellites.
Jupiter JF2 is provided with internal Flash memory to store operative SW, SW updates and Extended Ephemeris files (locally and server generated).
Equipped with a powerful yet power saving baseband processor, Telit Jupiter JF2 provides all the GPS information via NMEA standard protocol on serial interface.
Applications requiring an extremely quick FIX can efficiently retrieve the correct position within 2 seconds, by means of assisted GPS and real-time ephemeris file injection.
As a part of Telit’s corporate policy of environmental protection, all Telit products comply with the RoHS (Restriction of Hazardous Substances) directive of the European Union (EU Directive 2002/95/EG).
